Audio > Drivers

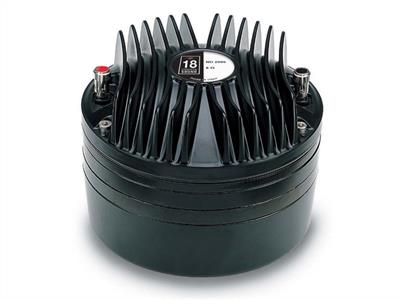

ND2080

Marca: 18 SOUND

Driver para altas frecuencias, estructura magnética de anillo de neodimio, garganta: 2" pulgadas (50 mm)

Precio: $7,690.00 MX

Costo de envío:

2 Piezas $200.00 MX

4 Piezas $300.00 MX

Throat Diameter	50 mm (2 in)
Rated Impedance	8 Ohm
D.C. Resistance	6,2 Ohm
Minimum Impedance	8 Ohm at 3500 Hz
Le (1kHz)	124 µH
AES Power	100 W above 1,2 kHz
Program power (8)	200 W above 1,2 kHz
Sensitivity (9)	110 dB
Frequency Range	500 Hz - 20 kHz
Recomm. Xover Frequency	800Hz 12 dB/octave
Diaphragm material	Titanium
Voice Coil Diameter	75 mm (3 in)
Voice Coil winding material	Edge-wound aluminum
Magnet material	Neodymium
Flux Density	2,2 T
Bl Factor	15,5 N/A
Polarity	Positive voltage on red terminal gives positive pressure in the throat
