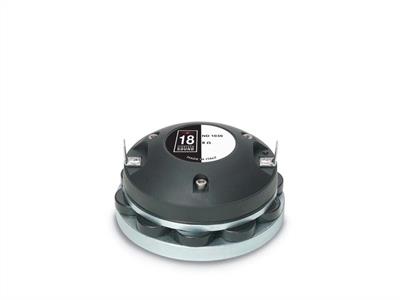

ND1030

Marca: 18 SOUND

---

Driver de neodimio, garganta de 1" pulgada

---

Precio: $1,700.00 MX

---

Costo de envío:

2 Piezas $200.00 MX

4 Piezas $300.00 MX

---

General Specifications HF
Throat Diameter 25,4 mm (1 in)
Rated Impedance 8 Ohm
D.C. Resistance 5,8 Ohm
Minimum Impedance 6,5 Ohm at 5000Hz
Le (1kHz) 54 µH
AES Power 30 W above 2 kHz
Program power (8) 60 W above 2 kHz
Sensitivity (9) 107 dB
Frequency Range 1800Hz - 20kHz
Recomm. Xover Frequency 1800Hz 12dB/oct slope
Diaphragm material Titanium
Voice Coil Diameter 34,4 mm (1 1/3 in)
Voice Coil winding material Edge-wound aluminum
Magnet material Neodymium
Flux Density 1,8 T
Bl Factor 6 N/A
Polarity Positive voltage on red terminal gives positive pressure in the throat
Mounting information
Overall diameter 85 mm (3,3 in)
N. of mounting holes and bolt 2 M5 holes on Ø 76 mm (3 in)
Bolt circle diameter 58 mm (2,3 in
Total depth 40,5 mm (1,6 in)
Net weight 0,7 kg (1,54 lb)
Shipping weight 0,75 Kg (1,65 lb)
Packaging Dimensions 97x97x58 mm (3,8x3,8x2,3 in)
