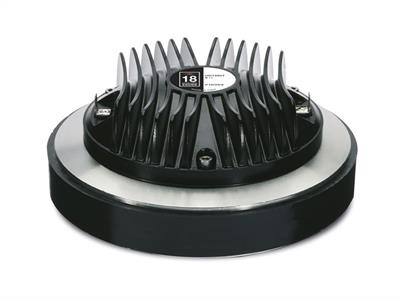

Driver 1.4" 109 dB SPL 1W / 1m average sensitivity 1.4 inch exit throat 3 inch edgewound aluminum voice coil 200W program power handling Polyethilene - Titanium diaphragm assembly Copper shorting ring on pole pieces Available also in 2" exit version
Costo de envío:
2 Piezas $200.00 MX
4 Piezas $300.00 MX
| Throat Diameter | 35.5 mm (1.4 in) |
| Rated Impedance | 8 Ohm |
| D.C. Resistance | 6,2 Ohm |
| Minimum Impedance | 8 Ohm at 3500Hz |
| AES Power | 100W above 1,2 kHz |
| Program power (8) | 200W above 1,2 kHz |
| Sensitivity (9) | 109 dB |
| Frequency Range | 500Hz - 20kHz |
| Recomm. Xover Frequency | above 800Hz (12 dB/oct slope) |
| Diaphragm material | Titanium - Polyethilene |
| Voice Coil Diameter | 75 mm (3 in) |
| Voice Coil winding material | Edge-wound aluminum |
| Magnet material | Ferrite |
| Flux Density | 1,8 T |
| Bl Factor | 12,8 N/A |
| Polarity | Positive voltage on + terminal gives positive pressure in the throat |
