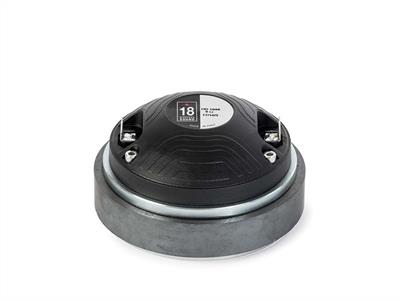

HD1040
Audio > Drivers

HD1040

Marca: 18 SOUND

1 inch exit throat 107 dB SPL 1W / 1m average sensitivity 44mm (1 3/4 inch) voice coil diameter 80 Watt program power handling Treated polyethylene diaphragm Proprietary phase plug design


Precio: $1,890.00 MX
Agregar al carrito

Costo de envío:

2 Piezas $200.00 MX

4 Piezas $300.00 MX




General Specifications HF

Throat Diameter 25,4 mm (1 in)
Rated Impedance 8 Ohm
D.C. Resistance 5,3 Ohm
Minimum Impedance 7 Ohm at 4000Hz
AES Power 40 W above 1,6 kHz
Program power (8) 80 W above 1,6 kHz
Sensitivity (9) 107 dB
Frequency Range 1600Hz - 20kHz
Recomm. Xover Frequency 1600Hz (12dB/oct slope)
Diaphragm material Treated polyethylene
Voice Coil Diameter 44,4 mm (1 3/4 in)
Voice Coil winding material Edge-wound aluminum
Magnet material Ferrite
Flux Density 1,6 T
Bl Factor 7,4 N/A
Polarity Positive voltage on + terminal gives positive pressure in the throat
